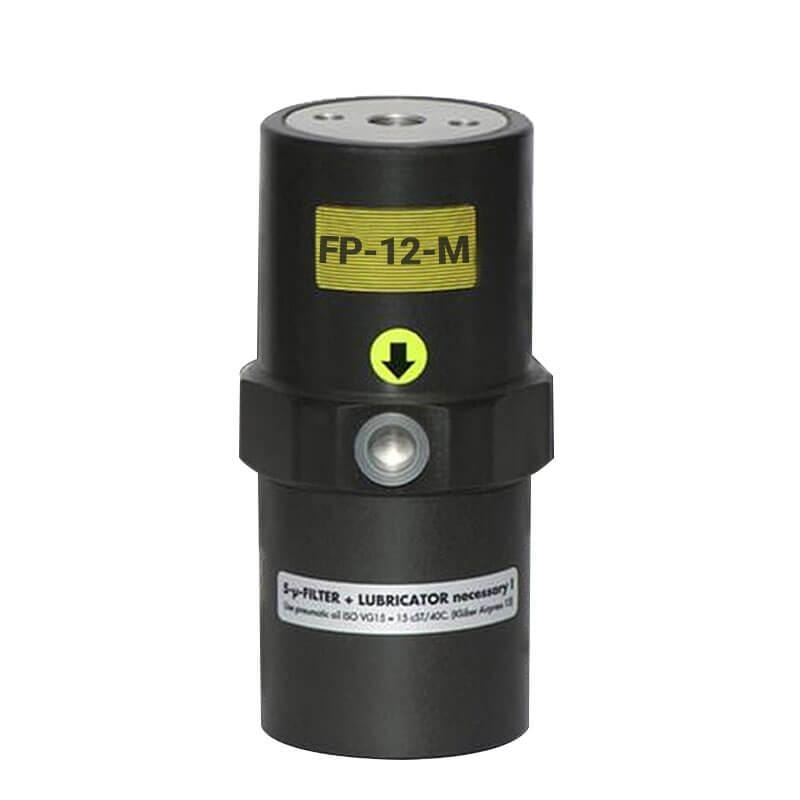

Pneumatic piston vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.
Properties
- Quiet and efficient
- Rated frequency 1,800 – 9,300 vpm
- Force 32 – 6,150 N
- Continuously variable
- Can be used up to 150°C
- Resistant to extreme environmental conditions
Field of application
- Driving conveyor and discharge chutes
- Loosening or compacting of bulk materials
- Starting up of mechanical processes
- Filling facilities
The vibrator operates in 2 or 6 bars with the following performance:
| Vibrations/min | Power Ν | Air consumption min/l | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 5.000 | 6.700 | 34 | 74 | 0,5 | 19 |
In Stock
Instant Delivery

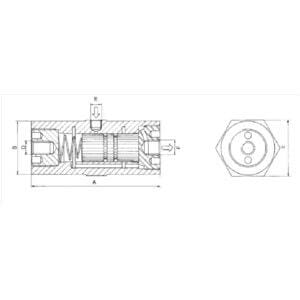

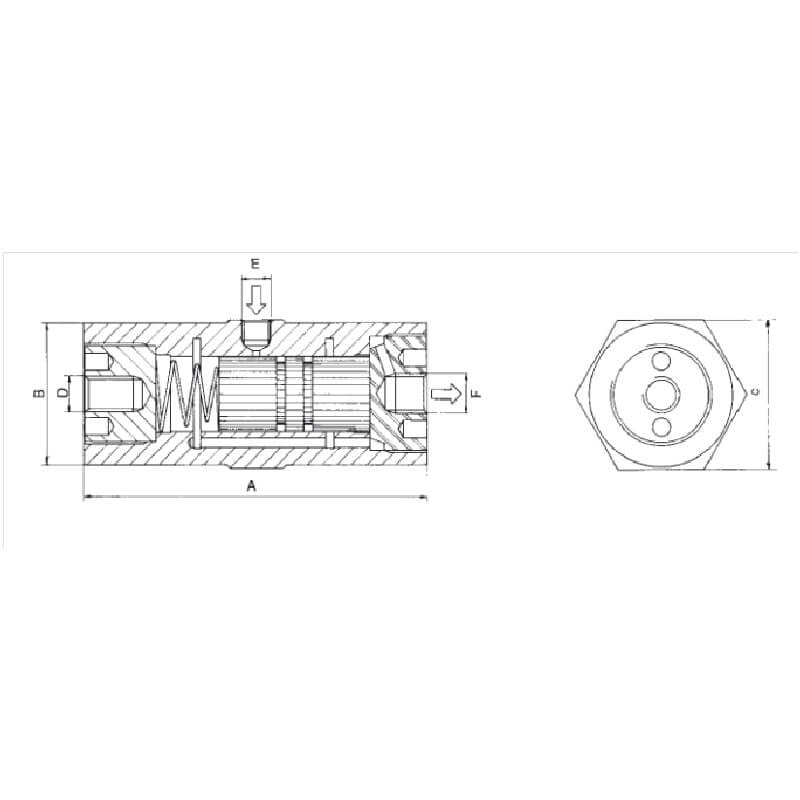

| A length mm | C SW mm | D thread | Ε input | F output |
| 81 | 34 | M 8 | 1/8″ | 1/8″ |
Construction
Aluminium housing surface-hardened and corrosion-resistant Housing made from hard-anodized aluminium alloy Piston made from leaded-bronze Steel spring starting device Sound-absorbing air outlet system Hard anodized aluminium base Threaded insert for mounting purposes
| Weight | 0,17 kg |
|---|---|
| Series | |
