| Weight | 6 kg |
|---|---|
| Performance kg | 211 kg |
| Performance kN | 2,07 kN |
| RPM | 3000 rpm |
| Poles | 2 poles |
| Current Supply | 24V |
In Stock
Instant Delivery

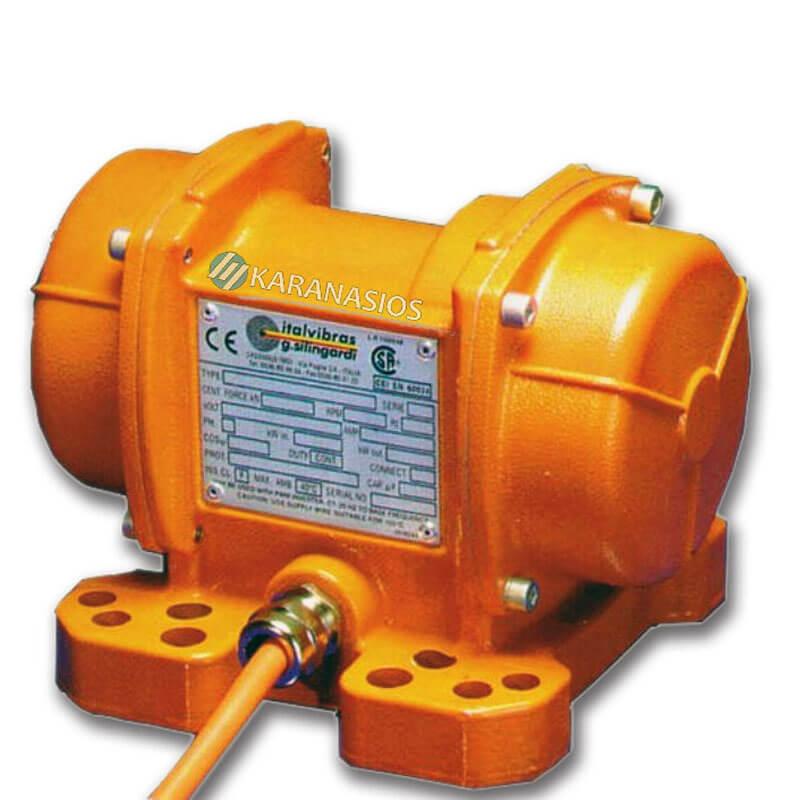

The MVCC series of vibrators with direct current has been designed for use in those situations where network electricity is not present. In particular for hoppers, silos and gate-controls and roll-on roll-off vehicles (concrete mixers, pumps for concrete, plasterers, salt distributors, gravel spreader, fertiliser spreader, hauled silos, industrial sweeper filters). The newly-conceived electric motor, with permanent magnet poles, and the increase in size of the electrical parts, allow constant, high yielding performance.
The MF models have a multi-hole fixing base to adapt to different center distances of drilling.
| A | B | C | D | E | øG | N° | F | H | I | L | M | N | Cable Entry Thread |
| 267 | 146.5 | 162 | 4 | 25 | 88 | 46 | 103 | 140 | 117 | Μ20*1,5 |
General Features
| Weight | 6 kg |
|---|---|
| Performance kg | |
| Performance kN | |
| rpm | |
| Power Supply | |
| Poles | |
| Company | |
| Power W | 190W |
