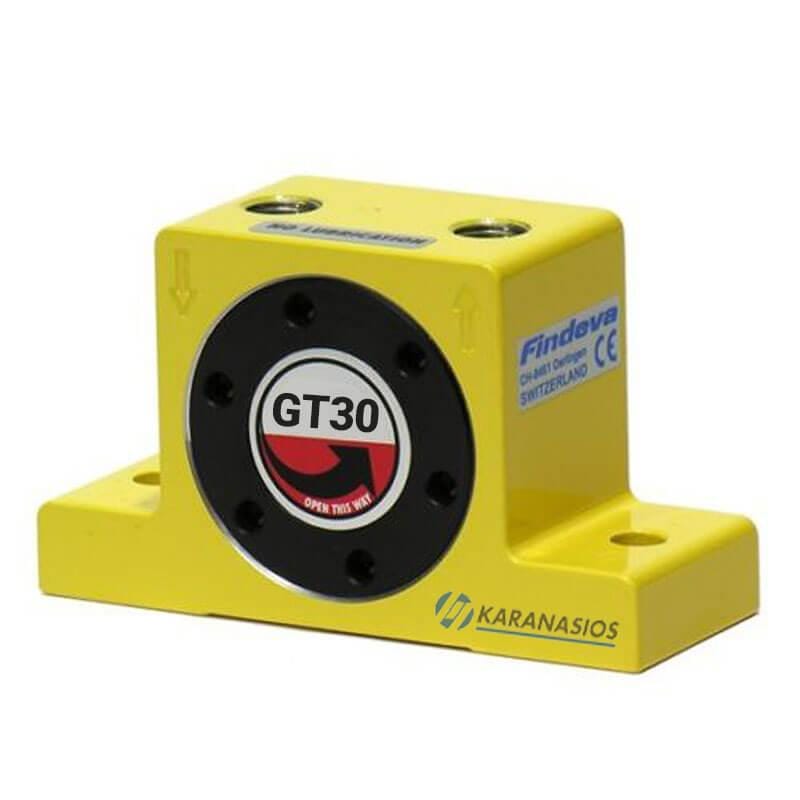

Golden turbine vibrator GT-30

High speed and eccentric working torques for strong vibration. Wide range.

Properties

  • Lubrication-free
  • Low noise level
  • Strong vibration by means of high speed and eccentric working torques
  • Rated frequency 6,000 – 46,000 rpm
  • Centrifugal force 130 – 12,000 N
  • Continuously variable
  • Can be used up to 150°C
  • Resistant to extreme environmental conditions

Field of application

  • Emptying of bunkers
  • Screen filters
  • Vibrating tables
  • Preventing adhesion in pipelines and silos
  • Transporting of fine powders
  • Moving of bulk materials

The vibrator operates in 2 or 6 atmospheres with the following performance

vibrations/min centrifugal force Ν air consumption l/min
2bars    6bars 2bars    6bars 2bars    6bars
13.000 16.000 3.380 7.540 330 745



SKU: 8030.00 Category:
mi-diathesimo Upon Order
Ask about the product

findeva-gt-series

A width C D E F G/H
mm mm mm mm mm mm
100 73 160 130 20 11 3/8″



Weight 2,193 kg
