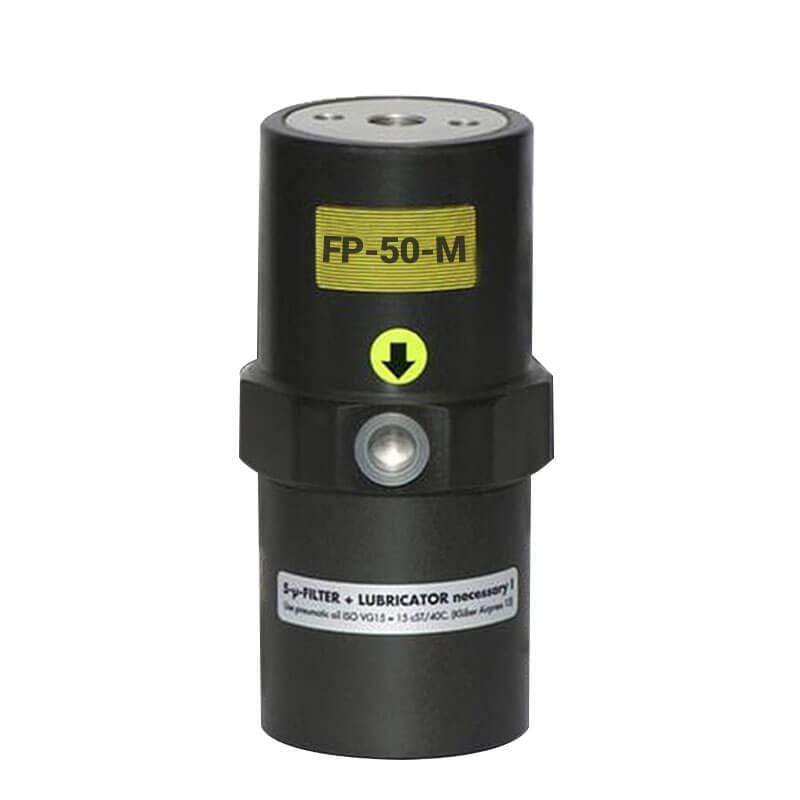

Piston vibrator FP-50-M

Pneumatic piston vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.

Properties

  • Quiet and efficient
  • Rated frequency 1,800 – 9,300 vpm
  • Force 32 – 6,150 N
  • Continuously variable
  • Can be used up to 150°C
  • Resistant to extreme environmental conditions

Field of application

  • Driving conveyor and discharge chutes
  • Loosening or compacting of bulk materials
  • Starting up of mechanical processes
  • Filling facilities

The vibrator operates in 2 or 6 bars with the following performance:

Vibrations/min Power Ν Air consumption min/l
2bars    6bars 2bars    6bars 2bars    6bars
1.950 2.700 610 2.170 90 275
SKU: 9050.20 Category:
mi-diathesimo Upon Order
Ask about the product

fp σχέδιο προσαρμοσμένο

A length mm
154

Construction

Aluminium housing surface-hardened and corrosion-resistant
Housing made from hard-anodized aluminium alloy
Piston made from leaded-bronze
Steel spring starting device
Sound-absorbing air outlet system
Hard anodized aluminium base
Threaded insert for mounting purposes

Weight 3,300 kg
Series

Company

Delivery

Upon Order

Karanasios
