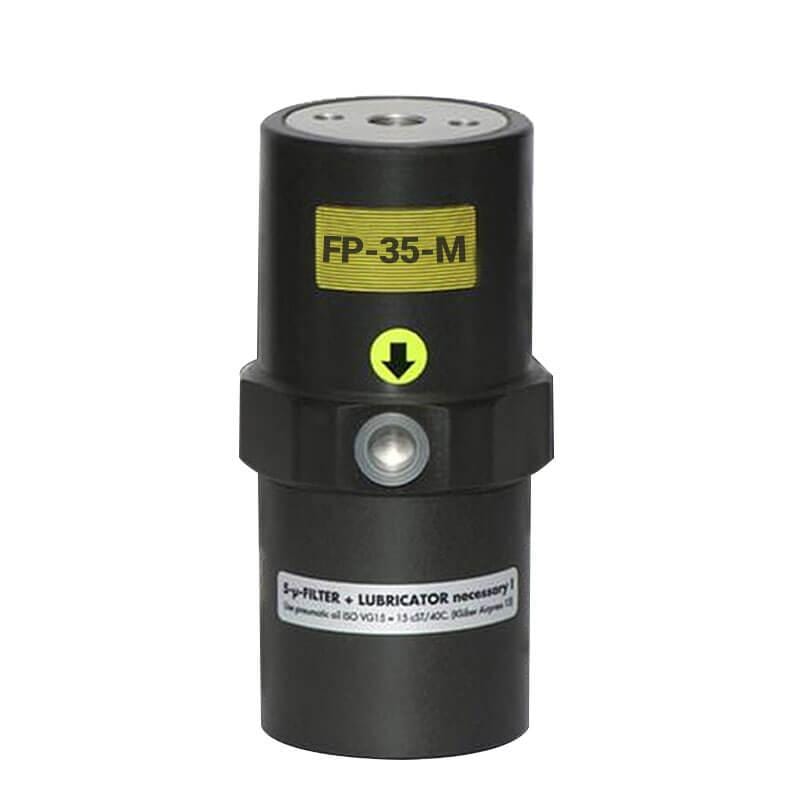

Piston vibrator FP-35-M

Pneumatic piston vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.

Properties

  • Quiet and efficient
  • Rated frequency 1,800 – 9,300 vpm
  • Force 32 – 6,150 N
  • Continuously variable
  • Can be used up to 150°C
  • Resistant to extreme environmental conditions

Field of application

  • Driving conveyor and discharge chutes
  • Loosening or compacting of bulk materials
  • Starting up of mechanical processes
  • Filling facilities

he vibrator operates in 2 or 6 bars with the following performance:

Vibrations/min Power Ν Air consumption min/l
2bars    6bars 2bars    6bars 2bars    6bars
3.000 4.600 248 1.080 24 141
SKU: 9035.20 Category:
apothema In Stockparadosi Instant Delivery
Ask about the product

fp σχέδιο προσαρμοσμένο

A length mm C SW mm D thread Ε input F output
116 65 M 12 1/4″ 1/4″

Construction

Aluminium housing surface-hardened and corrosion-resistant
Housing made from hard-anodized aluminium alloy
Piston made from leaded-bronze
Steel spring starting device
Sound-absorbing air outlet system
Hard anodized aluminium base
Threaded insert for mounting purposes

Weight 1,13 kg
