GEOTUB PANEL 50cm

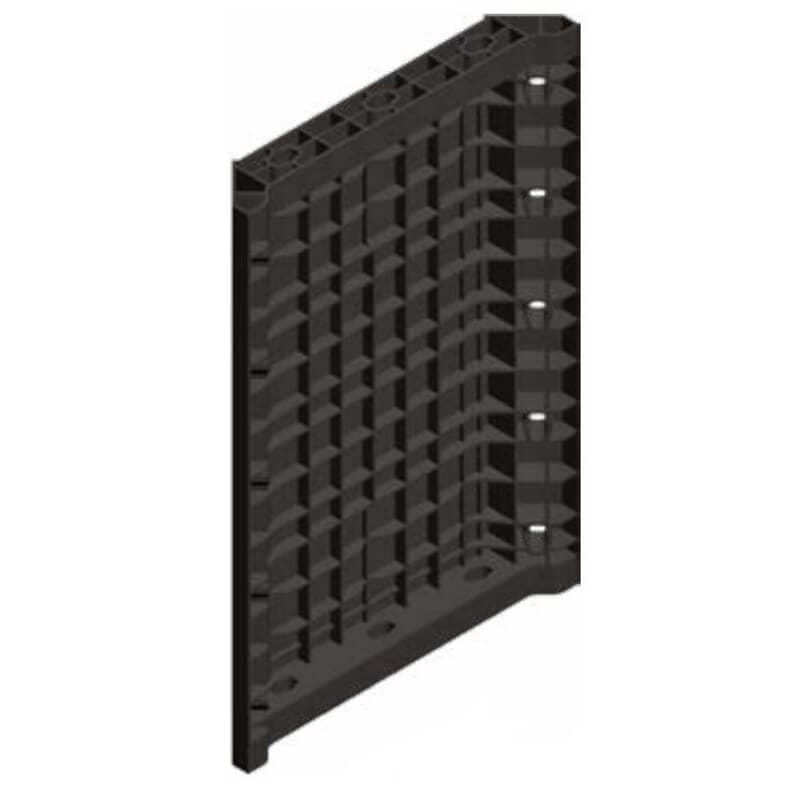

GEOTUB PANEL

ADVANTAGES OF USING GEOTUB® PANEL:
Thanks to its size range – a height of 75 cm and a width from 20 to 60 cm – it is possible to obtain up to 45 different combinations of size and shape. The single panels are joined using strong nylon handles and are used to assemble forms up to 3 meter column height.

REUSE
GEOTUB® PANEL is cost-competitive as it can be used for an average of 100 pours. As concrete does not stick to plastic, cleaning of the formworks is done using just some water: the use of detergents and stripping agents is not necessary.

FAST SET-UP AND STRIPPING
Setting-up the formwork and stripping after pouring are easy and fast operations, thanks to the special handles that lock with a simple 90 degree turn.

MODULARITY
GEOTUB® PANEL is a modular element with a height of 75 cm: it does not need to be cut to length as only the amount of elements required for the pour is used.

STORAGE
GEOTUB® PANEL can be completely disassembled and does not need to be stored in a dry environment.

HANDLING ON SITE
Thanks to their small size and weight, the elements can be easily handled in the construction site, and can be easily assembled where required.

RESULTS
The surface of columns poured with GEOTUB® PANEL can be left in sight without any further rework.

SETTING-UP

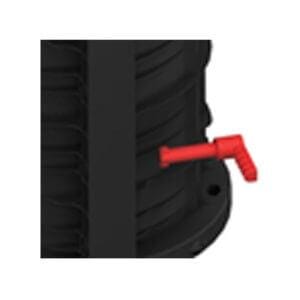

The single elements are joined using high-strength nylon handles. The set-up operation is very fast as the fast-lock nylon handles firmly join the forms with a simple 90 degree turn. There is no particular direction to follow while assembling the GEOTUB® PANNELLO elements, nor when using the handles, as they are are universal.
