GEOPANEL OUTER CORNER

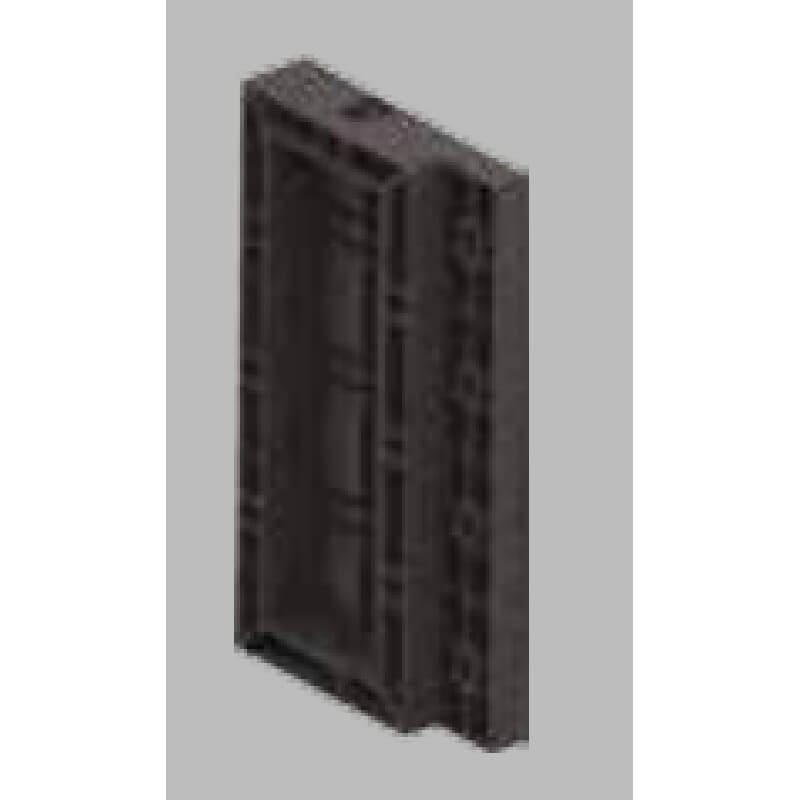

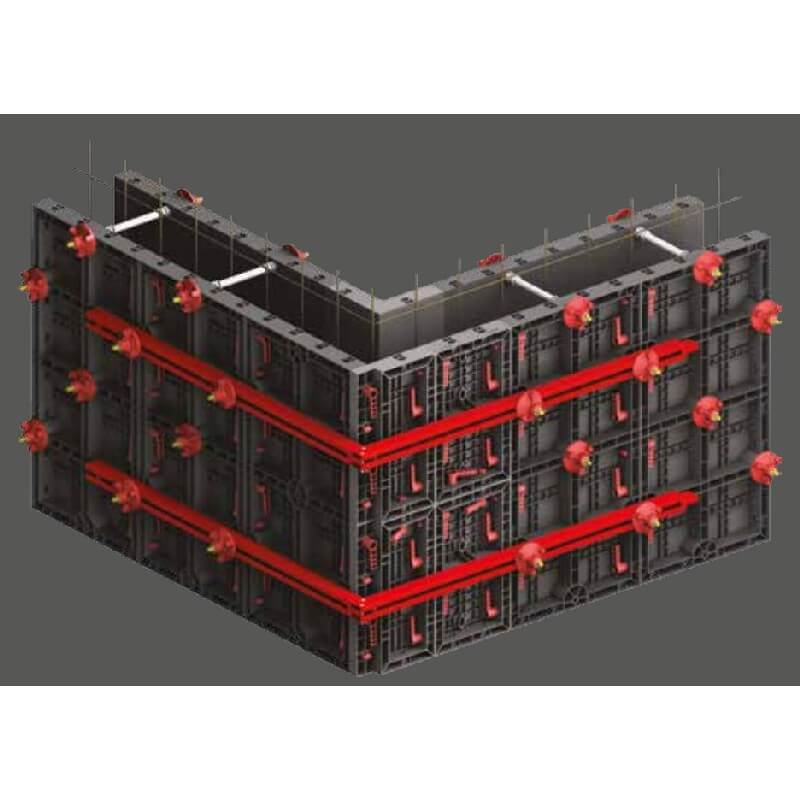

Thanks to the several possible panel combinations, and special internal- and external-corner elements, the wall thickness can be of 10, 15, 20, 25, 30, 35, 40 cm.

THE ADVANTAGES OF USING GEOPANEL:
SPEED
Each GEOPANEL® weighs just 11 kg, and the system can be erected by a single person. Light and easy to assemble, the system uses fast-lock nylon handles that firmly join the forms with a simple 90 degree turn.
GEOPANEL® does not need any releasing agents nor any special treatment while assembling or during pouring.

SETTING UP
The outer side of the panels is ribbed to make posting and plumbing easiser. The panels have holes to fit standard off-the shelf tie-rods, same as used for the traditional steel panels.

STORAGE
GEOPANEL® can be completely disassembled and does not need to be stored in a dry environment.

MODULARITY
All elements are a standard 60 cm high and are 20, 25, 30, 40 or 120 cm long, without any need for cutting to length, thanks to the modularity of the system.

HANDLING
The material can be easily disassembled and quickly handled within the construction site without having to use a crane thanks to its low weight and the fast-off handles.

MULTIPLE USE
GEOPANEL® is cost effective as it requires very little maintenance compared to the traditional systems, and it can be used up to 100 times when correctly washed and correctly used.

RESULTS
Concrete surfaces poured with GEOPANEL® can be left in sight without any further rework.

SKU: EGPANGE0060 Category:
apothema In Stockparadosi Instant Delivery
Ask about the product

GEOPANEL® is an easy and intuitive system of modular plastic formworks, to build concrete walls, basements, foundations and pillars. Compared with the traditional timber- or steel-systems, Geopanel is handier, more cost effective and quicker to set up. The Geopanel system has panels of various sizes, fastened together by means of fast-lock nylon handles.

Weight 3,80 kg
Dimensions 25 × 60 × 8 cm
