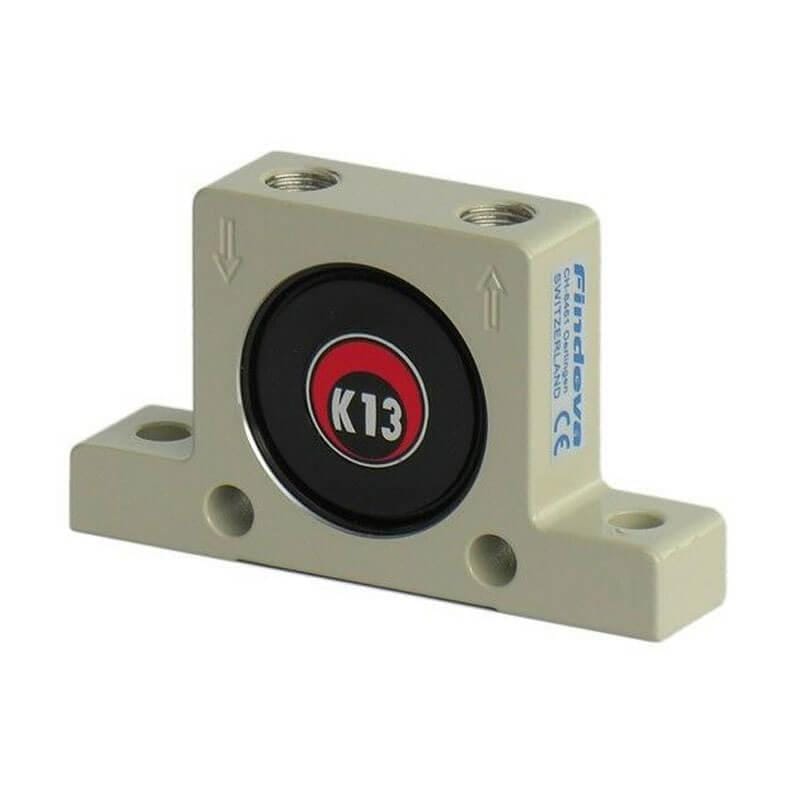

Ball vibrators, simple and good. Wide range for many applications.
Properties
- Powerful
- Rated frequency 7,300 – 35,000 rpm
- Centrifugal force 130 – 4,050 N
- Continuously variable
- Can be used up to 100°C
- HT-Version up to 150°C on request
Field of application
- Emptying of bunkers
- Screen filters
- Vibrating tables
- Preventing adhesions in piplines and silos
- Moving of goods
The vibrator operates in 2 or 6 atmospheres with the following performance
| vibrations/min | centrifugal force Ν | air concumption l/min | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 15.000 | 22.500 | 320 | 870 | 94 | 225 |
In Stock
Instant Delivery
| A | B | C | D | E | F | G | H |
| mm | mm | mm | mm | mm | mm | mm | thread |
| 65 | 24 | 113 | 90 | 16 | 9 | 50 | 1/4” |
Construction:
1 – Extruded aluminum alloy body
2 – Hardened ground steel alloy races
3 – Nylon endplates
4 – Hardened lapped ball
5 – Air inlet
6 – Air exhaust
7 – Base mounting holes
8 – Lateral mounting holes
| Weight | 0,256 kg |
|---|---|
