Roller vibrator DAR-3
Roller vibrators, especially for concrete and other heavy-duty applications. Wide range.
Properties
- High torque
- Rated frequency 7,800 – 38,000 rpm
- Centrifugal force 1,680 – 12,000 N
- Continuously variable
- Can be used up to 150°C
- Resistant to extreme environmental conditions
The vibrator operates in 2 or 6 atmospheres with the following performance:
| vibrations/min | centrifugal force Ν | consumption l/min | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 27.000 | 32.000 | 2.720 | 6.050 | 100 | 300 |

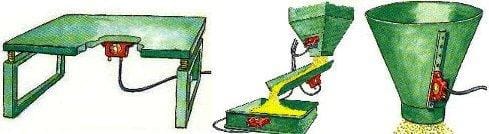

Field of application
- Compacting of plastic and concrete
- Assisting the flow of material in silos and hoppers
- Separating of diffrent sized products on sieve
In Stock
Instant Delivery
Roller vibrator DAR-3
| A | B | C | D | E | F | G/H |
| mm | mm | mm | mm | mm | mm | |
| 65 | 36 | 113 | 90 | 16 | 9 | 1/4″ |
Construction:
1 – Extruded aluminum alloy body
2 – High tensile steel races
3 – Cast iron roller
4– Special bronze endplates
5– Oiler grooves
6– Impurities collection grooves
7– Air inlet
8– Air exhaust
9 – Base mounting holes
| Weight | 0,76 kg |
|---|---|
| Series | |
