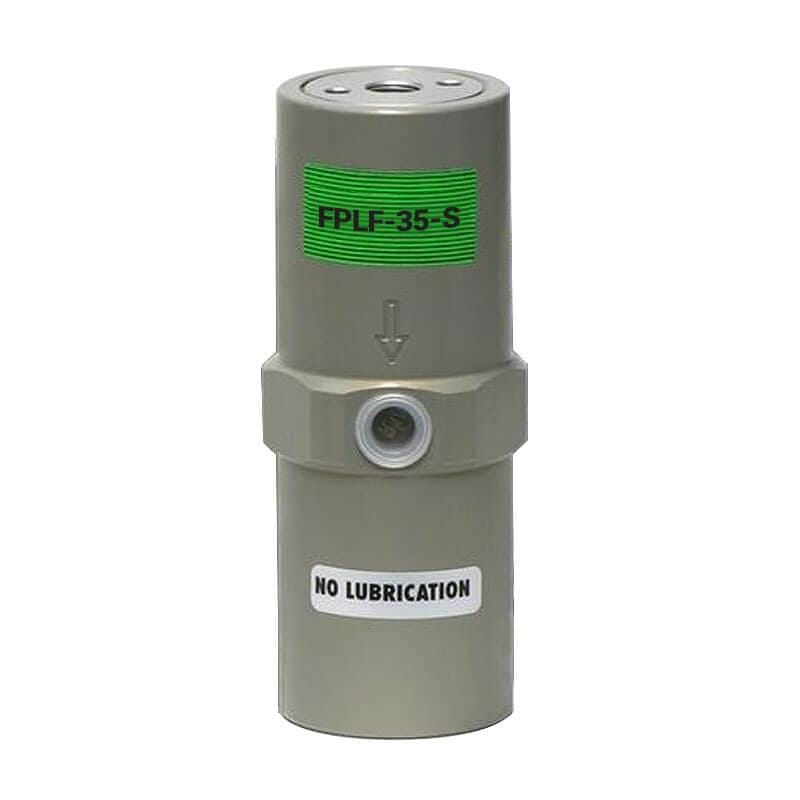

Piston vibrator FPLF-35-S
Lubrication-free pneumatic vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.
Properties
- Quiet and efficient
- Rated frequency 1,800 – 9,300 vpm
- Force 32 – 6,150 N
- Continuously variable
- Can be used up to 120°C
- Resistant to extreme environmental conditions
Field of application
- For foodstuffs and pharmaceuticals, complies with FDA specifications
- Driving conveyor and discharge chutes
- Loosening or compacting of bulk materials
- Starting up of mechanical processes
- Filling facilities
The vibrator operates in 2 or 6 atmospheres with the following performance:
| vibrations/min | power Ν | air consumption/λεπτό | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 3.800 | 5.800 | 294 | 1.038 | 23 | 162 |
In Stock
Instant Delivery
Piston vibrator FPLF-35-S
| Α length mm | C SW mm | D thread | E input | F output |
| 98 | 65 | M-12 | 1/4” | 1/4” |
Construction
| Weight | 0,93 kg |
|---|---|
| Series | |
| Company |
