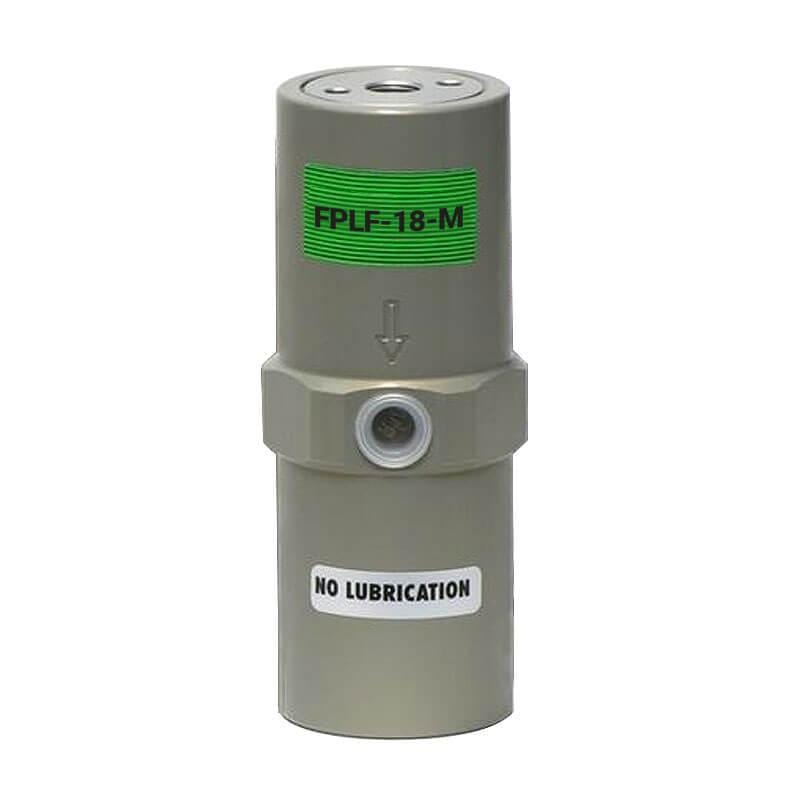

Piston vibrator FPLF-18-M
Lubrication-free pneumatic vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.
Properties
- Quiet and efficient
- Rated frequency 1,800 – 9,300 vpm
- Force 32 – 6,150 N
- Continuously variable
- Can be used up to 120°C
- Resistant to extreme environmental conditions
Field of application
- For foodstuffs and pharmaceuticals, complies with FDA specifications
- Driving conveyor and discharge chutes
- Loosening or compacting of bulk materials
- Starting up of mechanical processes
- Filling facilities
The vibrator operates in 2 or 6 atmospheres with the following performance:
| vibrations/min | power Ν | air consumption l/min | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 4.000 | 5.900 | 68 | 188 | 4 | 52 |
In Stock
Instant Delivery
Piston vibrator FPLF-18-M
| Α length mm | C SW mm | D thread | E input | F output |
| 94 | 42 | M-10 | 1/8” | 1/8” |
Construction
- Lubrication free operation possible.
- Extra hard and corrosion-resistant surface through aluminium oxide-generated by titaniferous electrolyte.
- Ideally suited for foodstuffs, drinks and pharmaceuticals.
| Weight | 0,35 kg |
|---|---|
