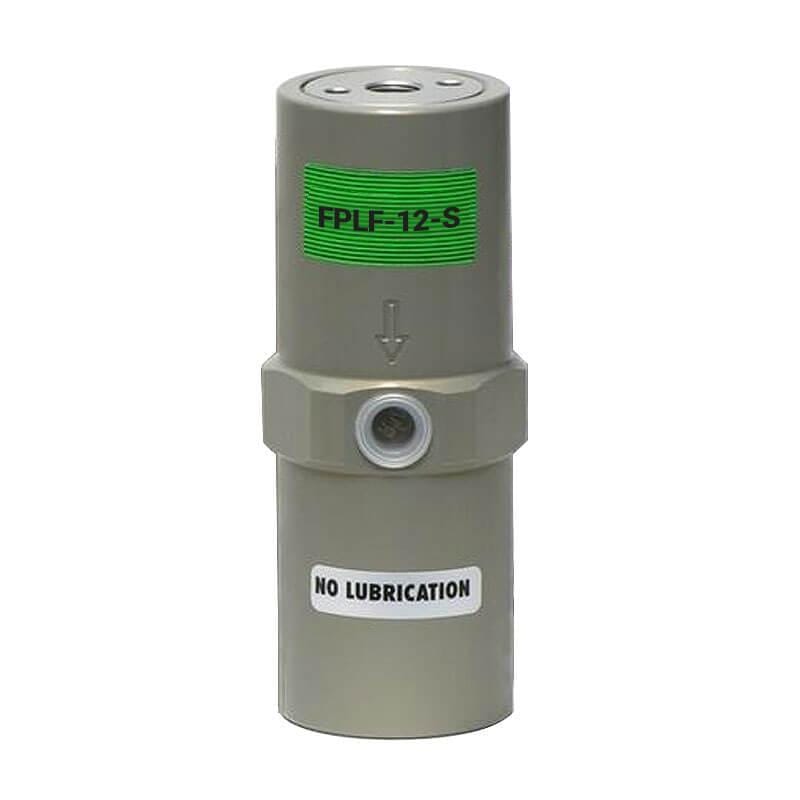

Piston vibrator FPLF-12-S
Lubrication-free pneumatic vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.
Properties
- Quiet and efficient
- Rated frequency 1,800 – 9,300 vpm
- Force 32 – 6,150 N
- Continuously variable
- Can be used up to 120°C
- Resistant to extreme environmental conditions
Field of application
- For foodstuffs and pharmaceuticals, complies with FDA specifications
- Driving conveyor and discharge chutes
- Loosening or compacting of bulk materials
- Starting up of mechanical processes
- Filling facilities
The vibrator operates in 2 or 6 atmospheres with the following performance:
| vibrations/min | power Ν | air consumption l/min | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 6.200 | 9.300 | 34 | 92 | 0,8 | 25 |
Upon Order
Piston vibrator FPLF-12-S
| Α length mm | C SW mm | D thread | E input | F output |
| 71 | 34 | M-8 | 1/8” | 1/8” |
Construction
- Lubrication free operation possible.
- Extra hard and corrosion-resistant surface through aluminium oxide-generated by titaniferous electrolyte.
- Ideally suited for foodstuffs, drinks and pharma ceuticals.
| Weight | 0,15 kg |
|---|---|
| Series | |
| Company | |
| Delivery | Upon Order |
