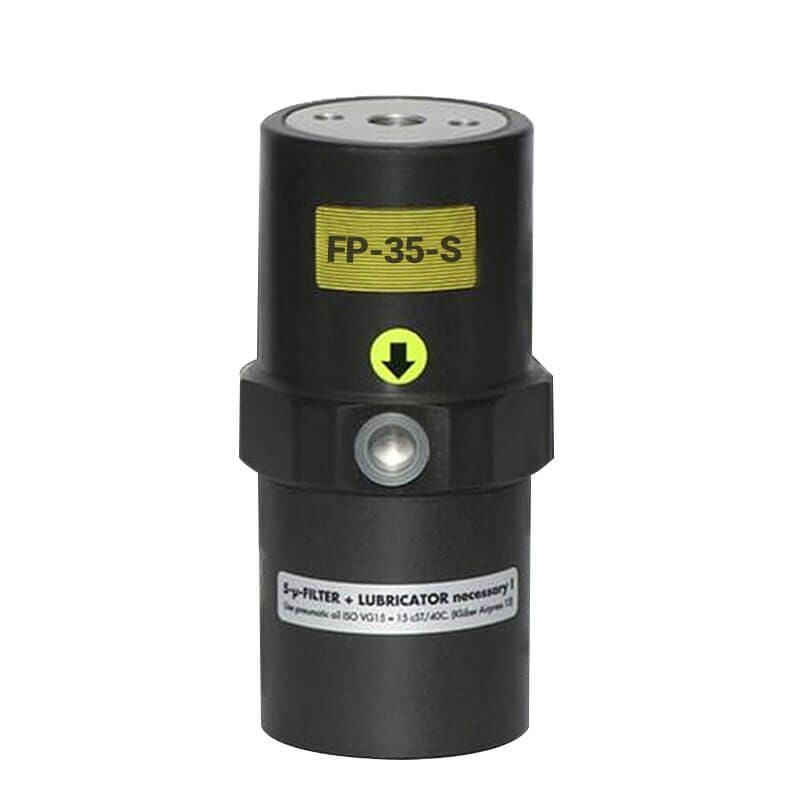

Piston vibrator FP-35-S
Pneumatic piston vibrators for linear vibration with unlimited fine-tuning facilities for amplitude and frequency. Wide range.
Properties
- Quiet and efficient
- Rated frequency 1,800 – 9,300 vpm
- Force 32 – 6,150 N
- Continuously variable
- Can be used up to 150°C
- Resistant to extreme environmental conditions
Field of application
- Driving conveyor and discharge chutes
- Loosening or compacting of bulk materials
- Starting up of mechanical processes
- Filling facilities
The vibrator operates in 2 or 6 bars with the following performance:
| Vibrations/min | Power Ν | Air consumption min/l | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 3.800 | 5.800 | 294 | 1.038 | 23 | 162 |
Upon Order
Piston vibrator FP-35-S
| A length mm | C SW mm | D thread | Ε input | F output |
| 98 | 65 | M 12 | 1/4″ | 1/4″ |
Construction
Aluminium housing surface-hardened and corrosion-resistant
Housing made from hard-anodized aluminium alloy
Piston made from leaded-bronze
Steel spring starting device
Sound-absorbing air outlet system
Hard anodized aluminium base
Threaded insert for mounting purposes
| Weight | 0,92 kg |
|---|---|
| Series | |
| Company | |
| Delivery | Upon Order |
