| Weight | 1,97 kg |
|---|---|
| Power | 35W |
| Performance kg | 20 kg |
| Performance kN | 0,196 kN |
| RPM | 3000rpm |
| Poles | 2 poles |
| Current Supply | CURRENT 380V |
In Stock
Instant Delivery

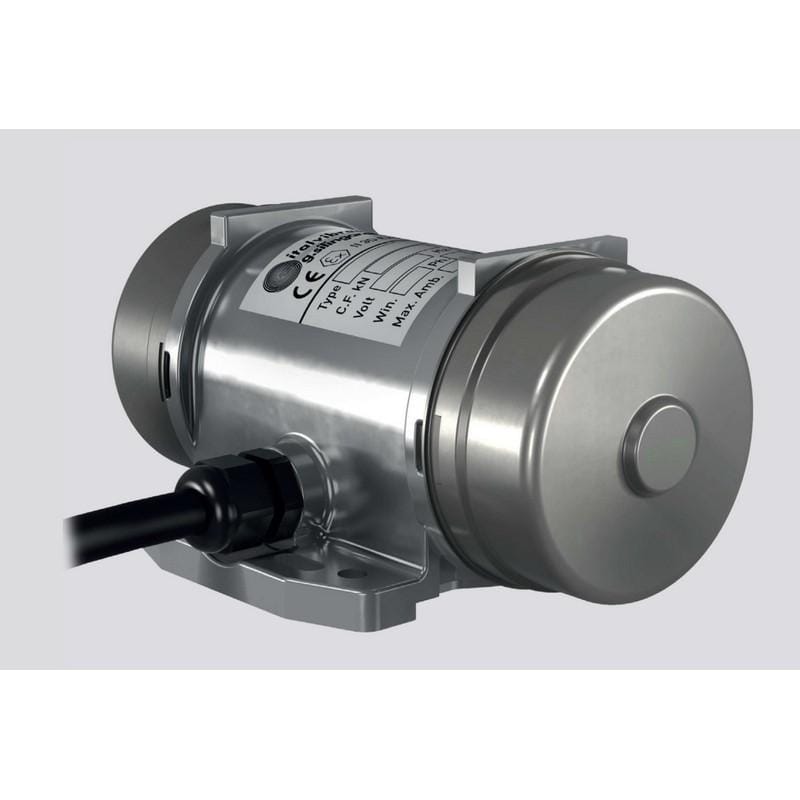

ITALVIBRAS M 3/20-380V
The MICRO series has been designed for continual industrial service in processes where a reduced centrifugal force and reduced overall vibrator size are required. MICRO vibrators are used in numerous applications in feeding, transport, screening, sizing, separation processes, compaction in the automatic machines used in the chemical industry, food industry, pharmaceuticals, packaging and automation in general.

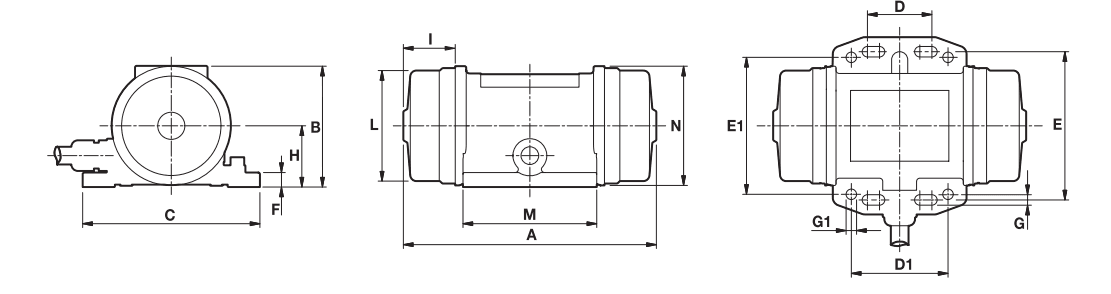

| A | B | C | D | D1 | E | E1 | G | øG | N° | F | H | I | L | M | N | Cable entry thread |
| 157 | 75 | 110 | 25-40 | 60 | 92 | 85 | 6.5 | 6.5 | 8 | 9 | 38 | 33 | 69 | 83 | 74 | Μ16*1,5 |
Technical details
| Weight | 1,97 kg |
|---|---|
| rpm | |
| Power Supply | |
| Poles | |
