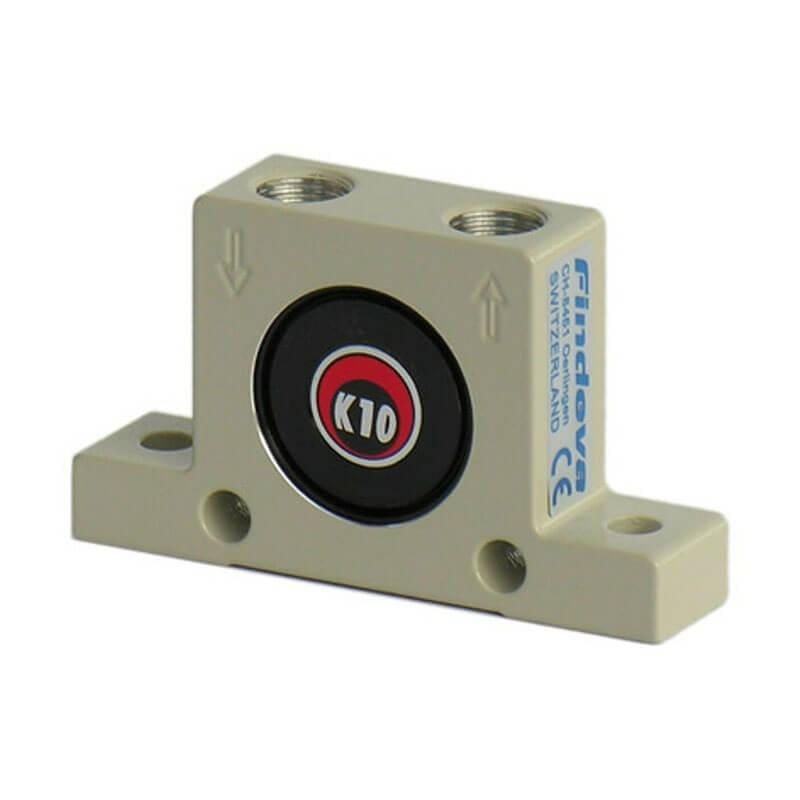

Ball vibrator K-10
Ball vibrators, simple and good. Wide range for many applications.
Properties
- Powerful
- Rated frequency 7,300 – 35,000 rpm
- Centrifugal force 130 – 4,050 N
- Continuously variable
- Can be used up to 100°C
- HT-Version up to 150°C on request
Field of application
- Emptying of bunkers
- Screen filters
- Vibrating tables
- Preventing adhesions in piplines and silos
- Moving of goods
The vibrator operates in 2 or 6 atmospheres with the following performance:
| vibrations/min | centrifugal force Ν | air concumption l/min | |||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars |
| 22.500 | 34.000 | 250 | 710 | 92 | 200 |
In Stock
Instant Delivery
Ball vibrator K-10
| A | B | C | D | E | F | G | H |
| mm | mm | mm | mm | mm | mm | mm | thread |
| 50 | 20 | 86 | 68 | 12 | 7 | 40 | 1/4” |
| Weight | 0,133 kg |
|---|---|
| Series | |
| Company |
